This is not a new idea, many people have discussed it in the past. The National Radio Systems Committee (NRSC) has a guidance paper, NRSC-G102 which gives a detailed explanation of why synchronized AM carriers are beneficial. There was even a move by some to have it included in the AM revitalization plan of a few years back. The NAB opposed this idea, saying it would be too expensive. That is unfortunate because out of all of the revitalization initiatives, GPS locked carriers had the best potential for an actual technical improvement. While it may be expensive for some very old tube type transmitters, for more modern solid state transmitters, GPS referenced carriers can be implemented as little as $200.00 US.
The FCC rule (73.1545(a)) for AM Carrier frequency specifies:
AM stations. The departure of the carrier frequency for monophonic transmissions or center frequency for stereophonic transmissions may not exceed ±20 Hz from the assigned frequency.
40 Hz is quite a bit of movement on a 20 KHz AM (18 KHz in ITU region II and III) channel. The reason for trying this is simple; there are many co-channel and first adjacent channel AM stations which at night, interfere with each other.
Above is a typical spectrum analysis of an AM station on 940 KHz. This was a 10 minute peak hold for an NRSC-2 spectrum mask measurement. The carrier is approximately 20 dB greater than the audio, which means that most of the interference between co-channel AM stations is created by the carriers beating against each other. By locking carriers to the same reference, that carrier interference will be greatly reduced. NRSC-G102 goes into great detail on the listenability of interfering stations with synchronous AM carriers (Page A-3).
Stations drifting off frequency also cause greater adjacent channel interference.
Almost all transmitters made in the last 30 years have an option to use an external frequency generator or 10 MHz reference. The required drive levels vary. The easiest way to implement this is by using a GPS locked programmable frequency source such as the Leo Bodnar LBE-1420. It can be programmed to any frequency from 1 Hz to 1.1 GHz, has a frequency stability of 0.000001 PPM (10-12), and an output level of 3.3 V peak-to-peak. This drive level is not enough for some transmitters. For those situations an additional amplifier such as a Mini Circuits ZHL-3A+ is needed.
Here are a few AM transmitters that except an external RF source including a GPS disciplined oscillator.
Nautel J-1000
An external RF source can be plugged into the EXT RF IN connector (J-6) on the Remote Interface board. The source must be on the carrier frequency ± 5 Hz and have a peak-to-peak voltage of between 5 – 15 V (sine wave or square wave), 50 ohm impedance.
An external 10 MHz signal can be connected to the RF synthesizer board 10 MHz REF INPUT (J2). The external 10 MHz frequency reference must be precisely 10.00 MHz and have a peak-to-peak voltage of between 2.2 – 8.0 V (sine wave or square wave).
Jumpers on the Remote Interface Board and RF synthesizer board need to be configured appropriately for each source. Consult the manual pages 3-9 and 3-11.
Nautel ND series
An external RF source can be connected to ABA1J1 on the external interface board. The RF drive must be on the carrier frequency ±5Hz with level of between 5 – 12 V peak-to-peak (sine wave or square wave) and have a 50-ohm impedance.
Do not remove the crystal from the RF Drive board as the PDM frequency for the modulator is derived from it.
To select the RF drive source for the transmitter the links on the RF Drive board need to be changed. Consult the manual pages 3-3 and 3-14.
Nautel XL series

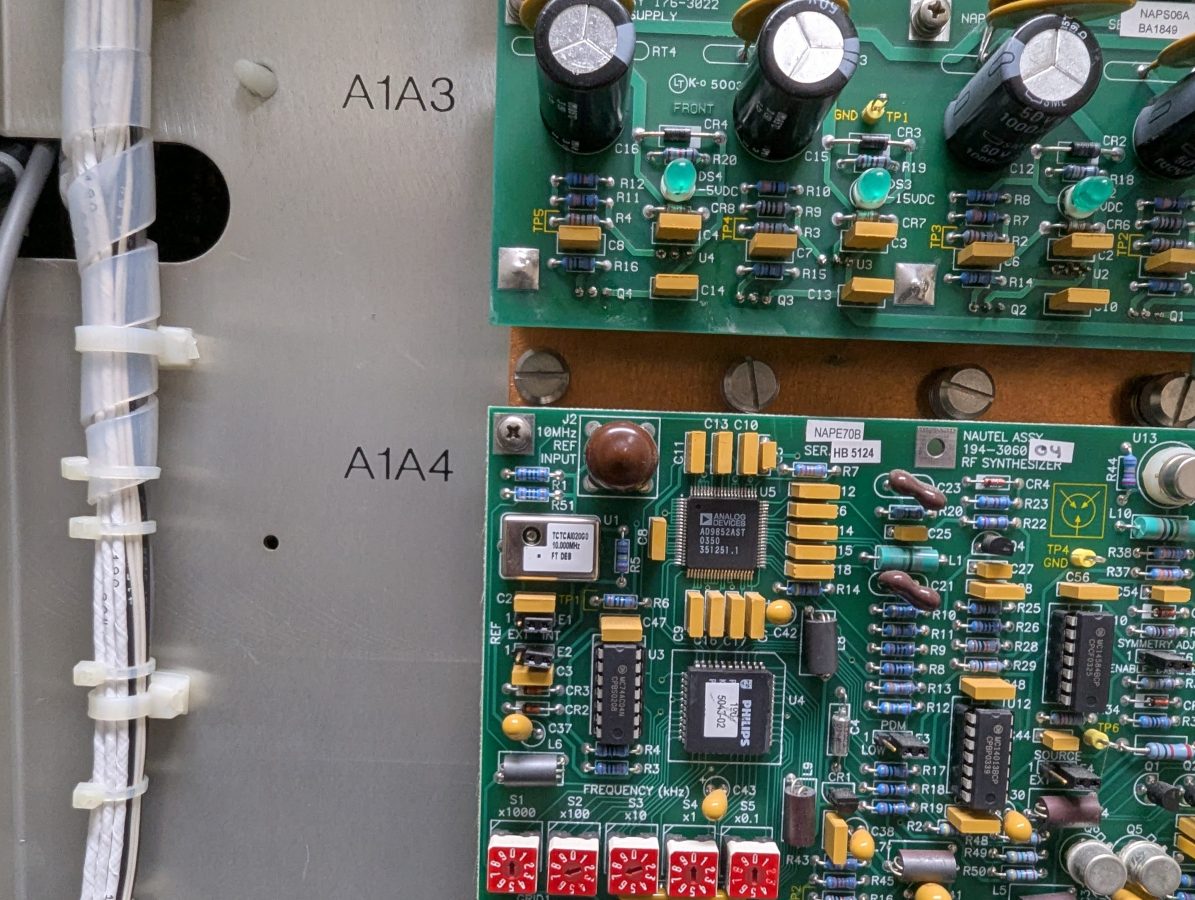

An external 10 MHz signal can be connected to the RF synthesizer board 10 MHz REF INPUT (J2). The external 10 MHz frequency reference must be precisely 10.00 MHz and have a peak-to-peak voltage of between 2.2 – 8.0 V (sine wave or square wave).
An external RF frequency source can be connected to the Exciter Interface board, J7. The external drive signal must be between 5 – 12 volts peak-to-peak (sine wave or square wave). Consult manual pages A1 and B4.
Nautel XR series

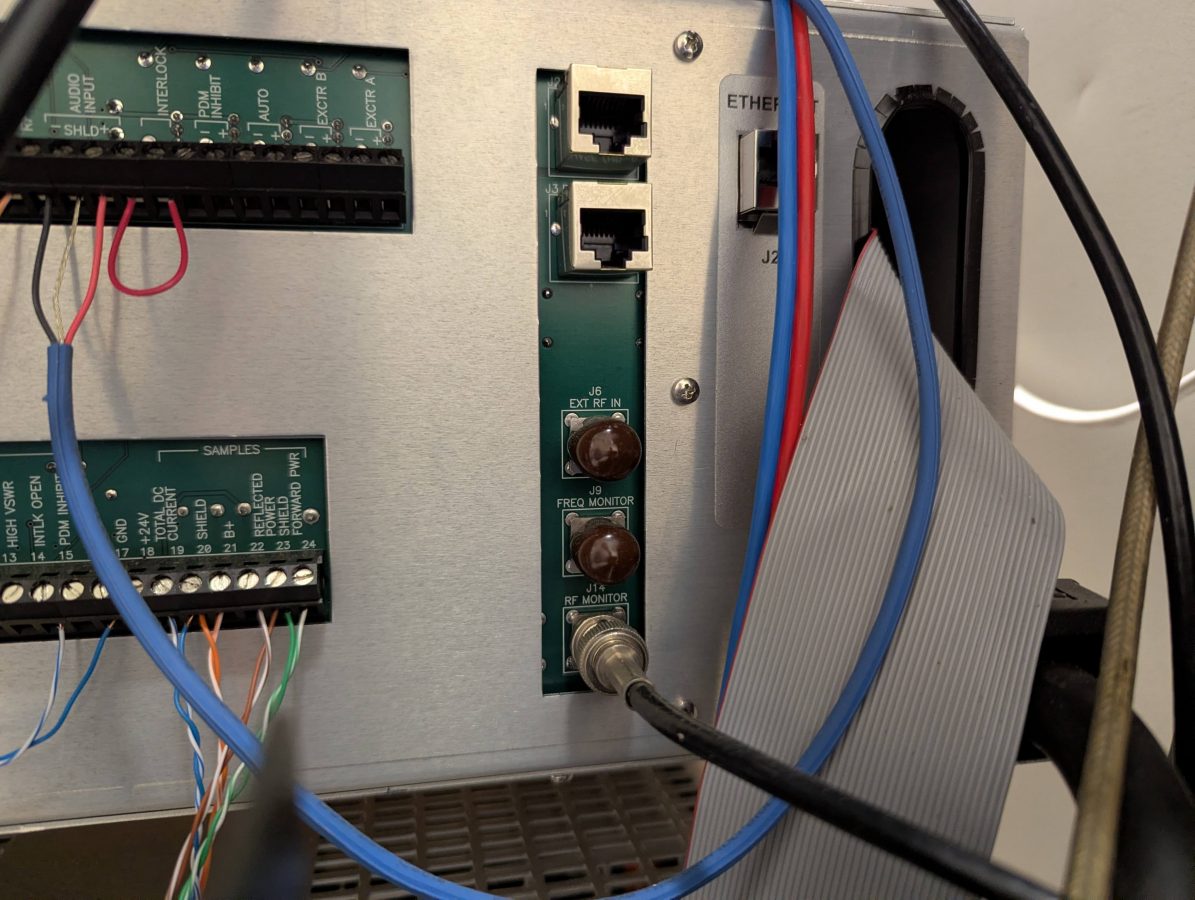

An external RF source can be connected to the remote interface board’s digital EXT RF IN (J6). This replaces the internal carrier frequency oscillator for one or both exciters (A/B). The external RF source must be the carrier frequency, within ± 5 Hz,
have peak-to-peak voltage between 5 – 12 V (sine wave or square wave). Consult the manual pages 7-1.
Broadcast Electronics AM2.5 – AM10A, AM5E

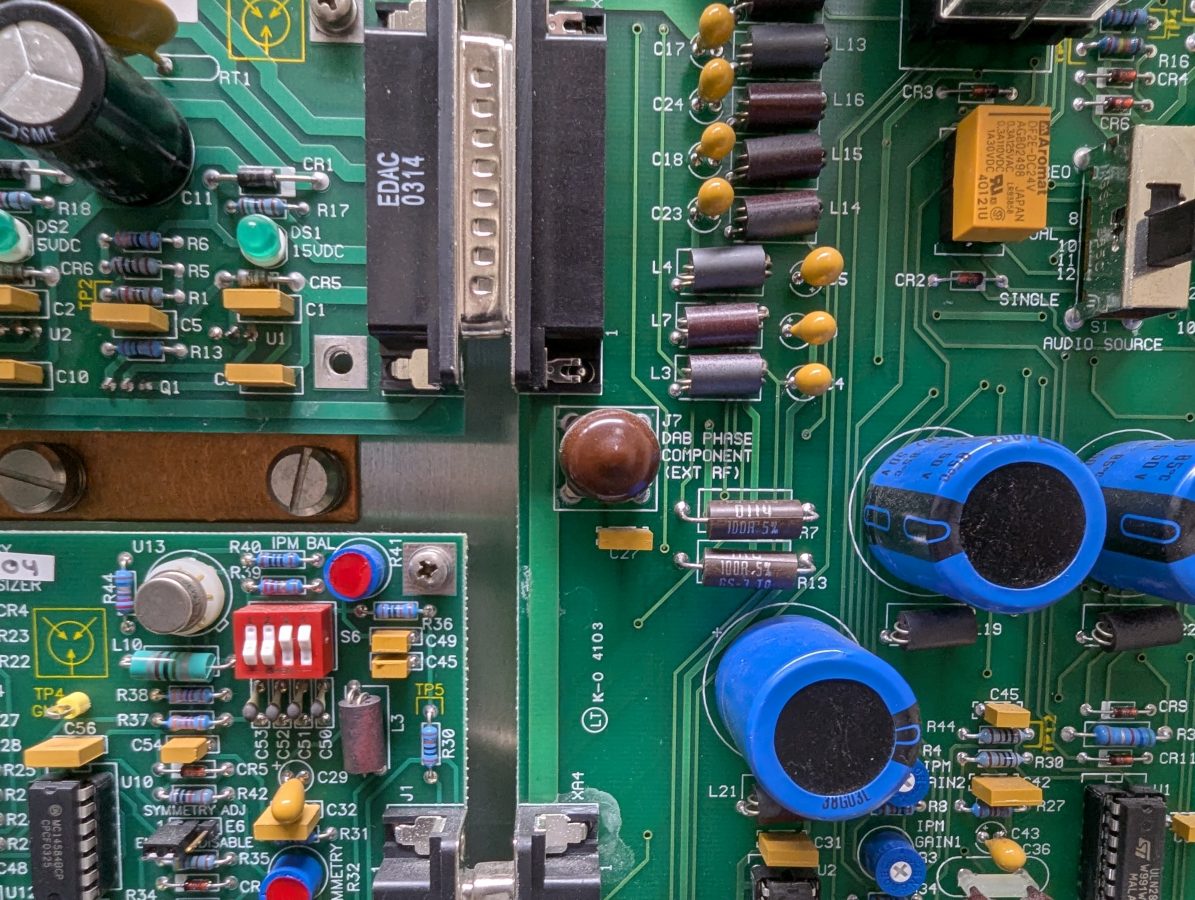

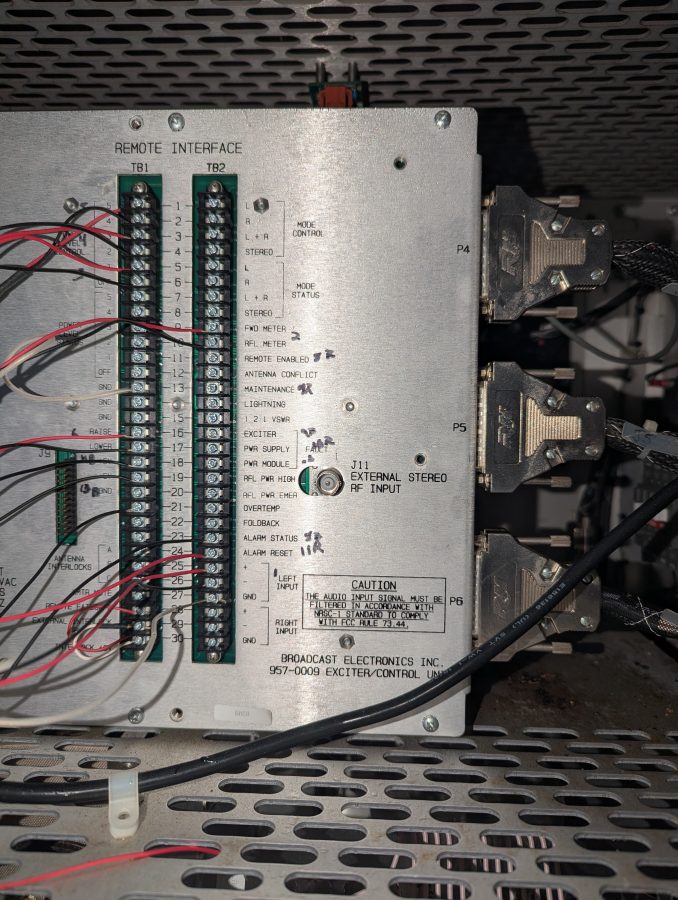

The transmitter has an external RF input on the top of the unit (EXTERNAL RF INPUT). The input is designed for an external stereo generator or reference oscillator with a signal level from 5 to 15 volts peak-to-peak. To use this input, program jumper P7 on the exciter circuit board in position 1-2. Consult the manual page 2-19.
Broadcast Electronics AM500 – AM1A

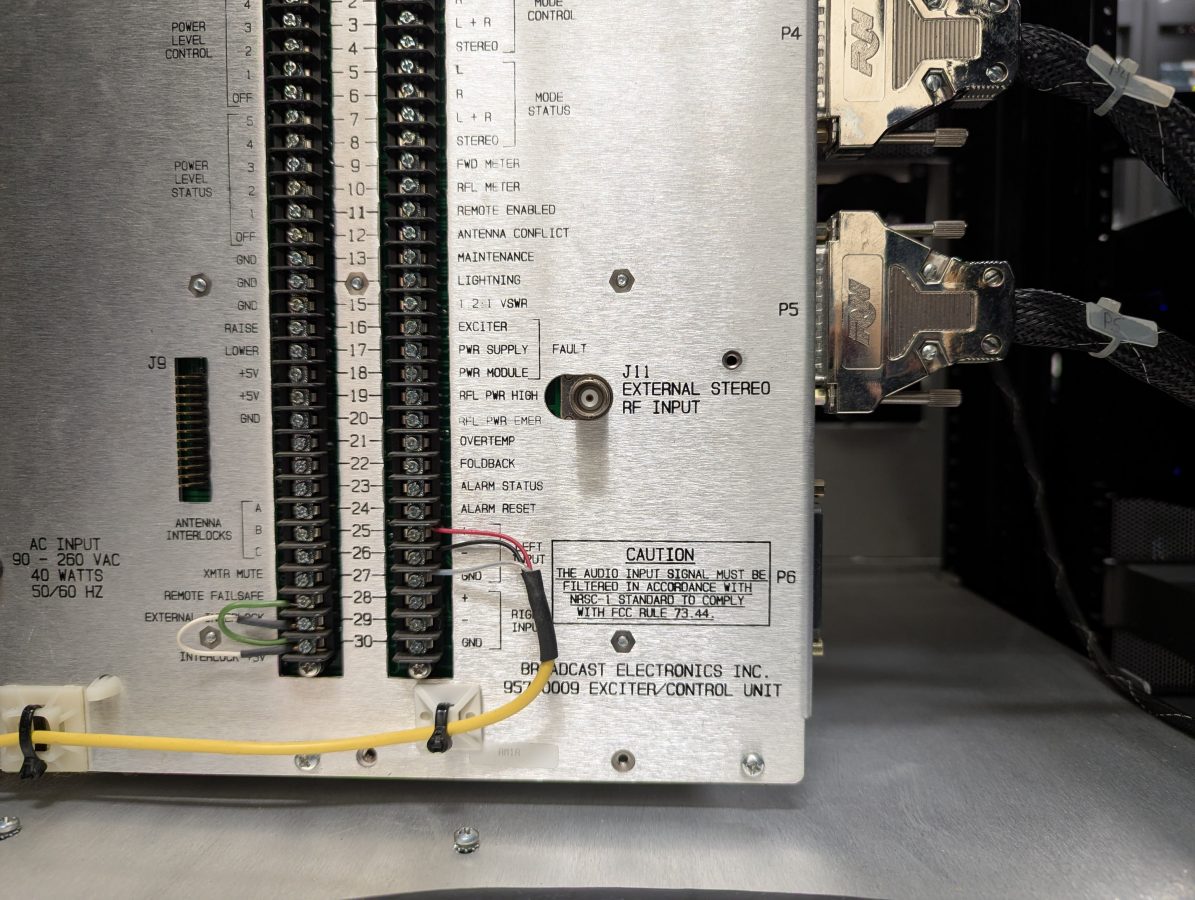

The transmitter has an external RF input on the ECU rear-panel (EXTERNAL STEREO RF INPUT (J1). The input is designed for an external stereo generator or reference oscillator with a signal level from 5 to 15 volts peak-to-peak. To use this input, program jumper P7 on the exciter circuit board in position 1-2. Consult the manual page 2-20.
Harris Gates AM series
An external RF source can be plugged into J-1 on the Oscillator board. The source must be on the carrier frequency ± 20 Hz and have a peak-to-peak voltage of 5 volts. Frequency source selector P-6 must be set to external. Consult the manual, Oscillator Board Schematic.
Harris DX series

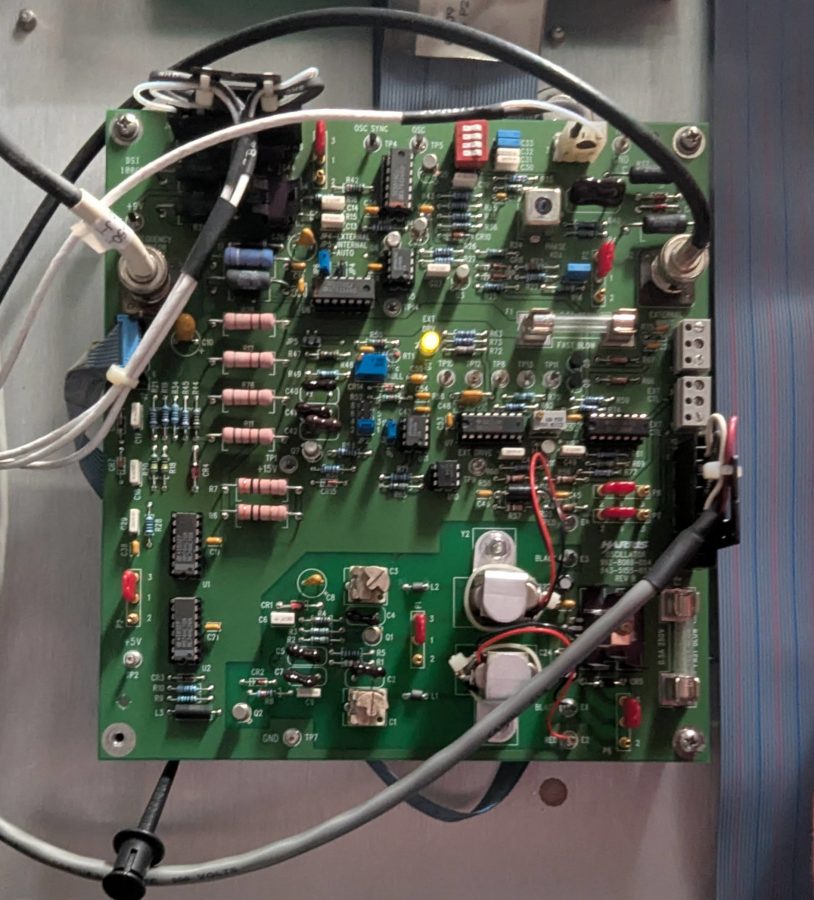

An external frequency generator can be connected to J2 on board A3. Jumper P5 should be set to either 20K ohms or 50 ohms depending on the source impedance. Jumper P6 can be set to either external source or automatic source selection. The drive level needs to be 4 to 4.5 volts peak-to-peak square wave for high impedance inputs or 0 to +25 dBm for 50 ohm impedance sources. Consult the manual, page A-2.
Newer DX series oscillator boards which have automatic source selection will fail over to the internal oscillator if anything happens to the externally generated RF signal.
Harris DAX
An externally generated carrier frequency or 10 MHz reference signal can be connected to connector J11 for the external carrier or J10 for the 10 MHz reference on the External I/O board. External carrier or 10 MHz reference must then be enabled via the VT100 screen. The external carrier frequency or 10 MHz reference must be above 2.0 volts peak-to-peak. Consult the manual page 3-15.
Harris 3DX

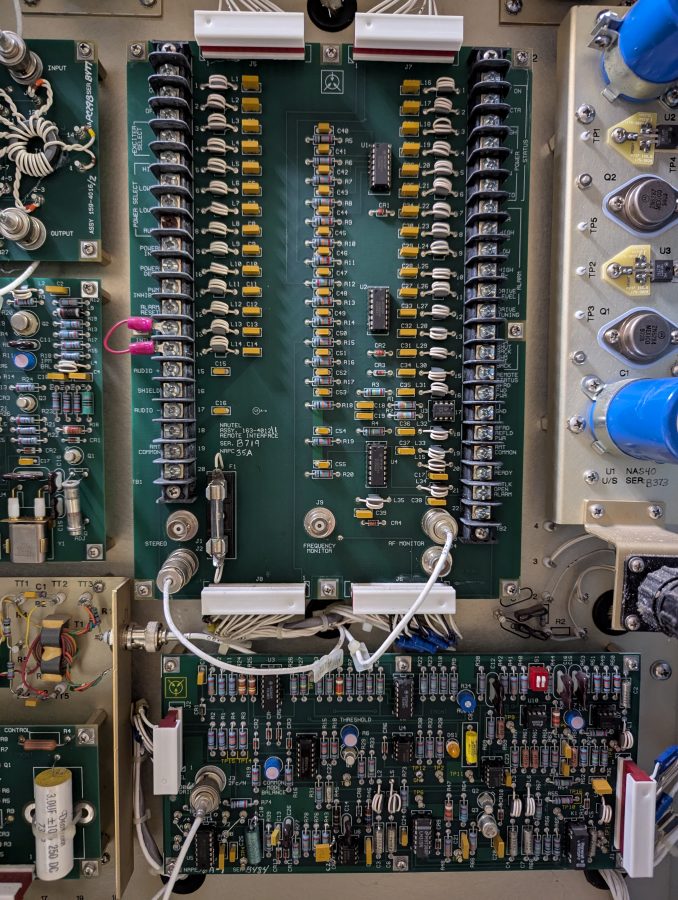

An externally generated carrier frequency can be connected to J12 (RF CARRIER) jack on the external IO board. The drive levels need to be 4 to 5 volts peak-to-peak, square or sine wave. On the carrier frequency +/- 5 Hz. The input is impedance is selectable for either 50 ohms or 10 K ohms.
An externally generated 10 MHz reference frequency can be connected to J10 (10 MHz REFERENCE). 10 MHz reference level needs to be 1 to 5 volts RMS, square or sine wave. The input impedance is selectable for either 50 ohms or 10 K ohms.
Programming for these options is done on the exciter setup page. Consult manual page 2-43.
Harris SX series
SX series transmitter have either an oscillator board or a frequency synthesizer board. Both will accept an external frequency source. The oscillator board is A16J1 and it needs a 5 volt peak-to-peak carrier frequency signal. Frequency source selector P-6 must be set to external.
The frequency synthesizer board external frequency input is also J1, however, it requires a 10 volt peak-to-peak signal. Frequency source selector P-6 must be set to external.
Conversion table for various RF power levels into a 50 ohm impedance
| Volts, Peak-Peak | Volts, RMS | dBm | mW |
| 2.2 | 0.77 | 10.8 | 12 |
| 3.3 | 1.23 | 14.35 | 27 |
| 5 | 1.76 | 17.9 | 62 |
| 10 | 3.5 | 23.9 | 250 |
| 12 | 4.24 | 25.5 | 360 |
| 15 | 5.3 | 27.5 | 562 |
| 20 | 7.07 | 30 | 1000 |
A 10 MHz reference input is preferred over direct carrier frequency generation simply for the ease of implementation. With direct carrier frequency generation, the frequency output of the GPSDO needs to be double checked. One misplaced digit and severe damage to the transmitter can result.
AM Tube type transmitters, plus early solid state transmitters such as the Harris MW1A may have instructions for implementing AM stereo. Since the AM stereo exciters generated the carrier frequency, those instructions would be a good guide on how to connect an external frequency generation source. However extensive modifications may be needed to the oscillator section depending on the transmitter.
Honestly, this is cheap enough that I think all new AM transmitters should come with this from the factory.
